- This pack contains:
- Grey aluminum sliding gate
- Grey aluminum pedestrian gate
- 4 aluminum posts, 240cm high

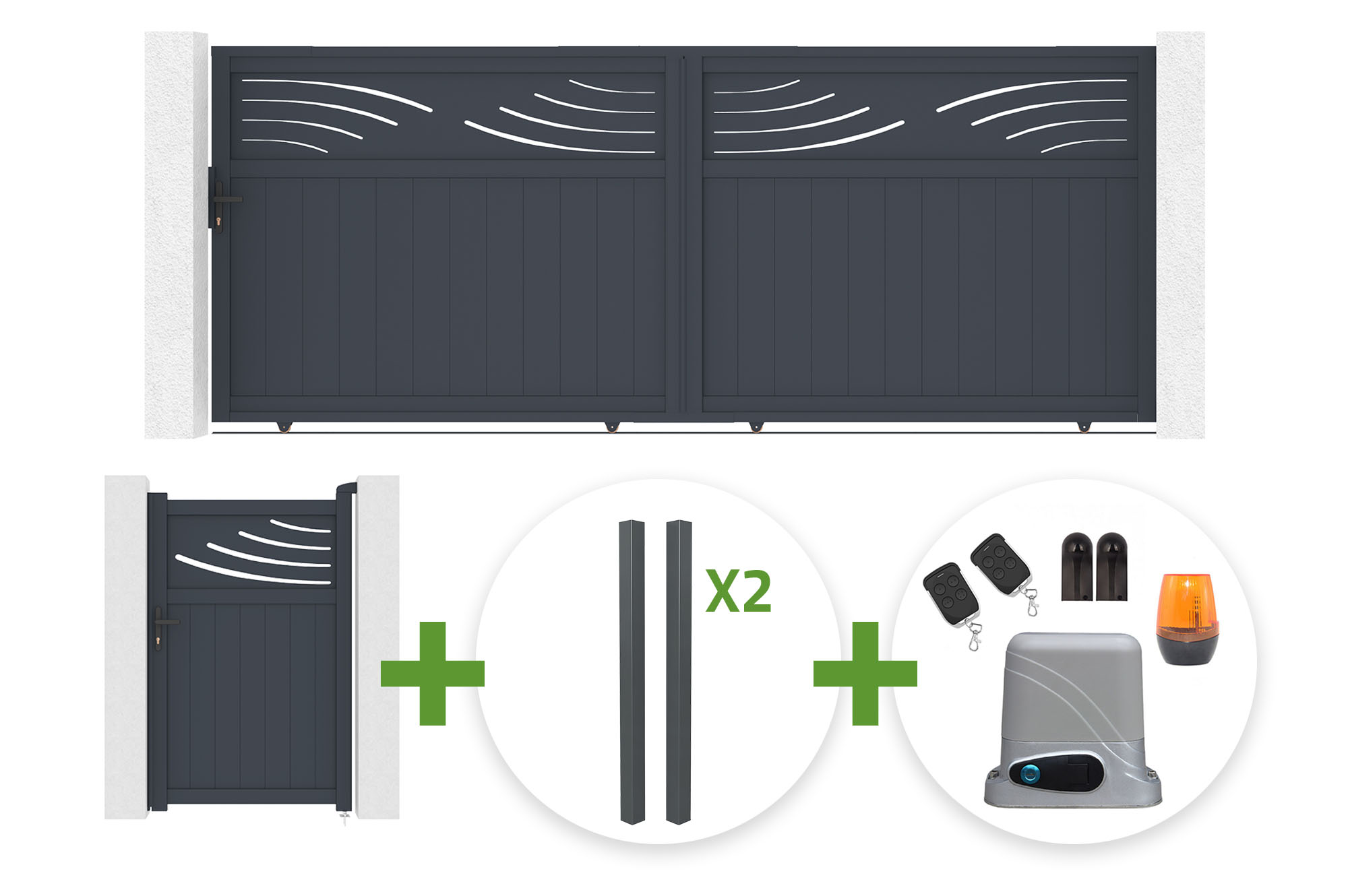

4m HALTI sliding gate, 160cm high, grey aluminum + 4 ELDA posts + 1m HALTI pedestrian gate, 160cm high, grey aluminum + Tanker C600 motor
PAC-004354
£3777TVA 10% ✓
FREE delivery between 03/09 and 08/09
- This pack contains:
- Grey aluminum sliding gate
- Grey aluminum pedestrian gate
- 4 aluminum posts, 240cm high
Secure payment
Delivery within 5 days
Free shipping
4m HALTI sliding gate, 160cm high, grey aluminum + 4 ELDA posts + 1m HALTI pedestrian gate, 160cm high, grey aluminum + Tanker C600 motor
£3777
Description
Sliding gate kit 4m HALTI H.160cm grey aluminium
Looking for a modern and unique sliding gate? Discover our HALTI range.
The HALTI designer sliding gate stands out thanks to its refined and flowing 'nature' patterns, evoking organic shapes. These elegant cutouts add a natural and contemporary touch to the overall look while maintaining …
Set of 2 ELDA posts 15x15cm aluminum H.240cm anthracite gray
The ELDA 15x15cm aluminum posts are designed to offer strength, durability, and elegance for your aluminum gate and pedestrian gate installations. With a total height of 240cm and a thickness of 3mm, these posts guarantee optimal stability for gates up to 160cm high.
Made of …
Side gate 1m HALTI H.160cm grey aluminium
Need a modern and elegant gate? Discover the HALTI range.
The HALTI designer gate stands out with its refined and flowing "nature" patterns, inspired by organic shapes. These decorative cutouts add a natural and contemporary touch while ensuring complete privacy. A perfect blend of aesthetics …
TANKER C600 sliding gate motorization
The TANKER C600 sliding gate motor is designed for users wishing to motorize their sliding gate to automate its opening and closing. It allows you to transform your gate into an electric sliding gate.
This rack-and-pinion motor is suitable for all types of sliding gates …
Sliding gate kit 4m HALTI H.160cm grey aluminium
Looking for a modern and unique sliding gate? Discover our HALTI range.
The HALTI designer sliding gate stands out thanks to its refined and flowing 'nature' patterns, evoking organic shapes. These elegant cutouts add a natural and contemporary touch to the overall look while maintaining perfect privacy. Combining elegance and practicality, this aluminum sliding gate is perfect for enhancing outdoor spaces with a nature-inspired design.
Sliding Gate: Suitable for large openings and difficult terrain
The sliding gate is designed to adapt to a wide variety of configurations, particularly sloping entrances or tight spaces. With a side opening, it allows for optimal space savings while facilitating vehicle access. Our sliding gates offer great durability with minimal maintenance. By adding a sliding gate motor, you benefit from full automation, making the use of your motorized sliding gate even more convenient and seamless on a daily basis.
This sliding gate has a wind resistance of 55 km/h.
Material: Aluminum
Color: Anthracite Gray - RAL 7016
Pattern: "Nature"
Dimensions: Width 392 cm x Height 160 cm
Required width between pillars: 397 cm
Minimum pillar height: 175 cm
Inspired and designed in France
- 24 powder-coated slats (15.5 cm wide)
- 1 upper guide with 4 nylon rollers
- 6 m steel guide rail
- 4 steel rollers
- 1 retaining plate
- 1 retaining stop
- 1 cylinder lock
- 1 handle (black)
- 5 keys
- Finishing caps
- Screws
About the Material
Aluminum is attractive for its lightness and ease of use, making it easy to install on all types of terrain. A modern material, it offers a wide range of designs and colors to complement your exterior. Resistant to impacts and climatic variations, it remains intact over time. By choosing aluminum, you benefit from a versatile, customizable, and durable design to enhance your outdoor space.
Are posts included?
Our kits do not include posts, as they are not always necessary. If you already have posts in place, installation is possible without any additional hardware.
For those who need them, we offer value packs with compatible posts.
To ensure a safe and stable installation of the sliding gate, the posts must be at least 175 cm high and at least 15 cm wide.
How should I maintain my aluminum product?
Aluminum requires very little maintenance. To maintain its shine and durability, clean it once or twice a year with warm, soapy water and a soft cloth.
Rinse and dry thoroughly, and avoid abrasive products or high-pressure cleaning, which could damage the powder coating.
Need help choosing your sliding gate?
Contact our customer service via our online form.
Product delivered in kit form
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsSet of 2 ELDA posts 15x15cm aluminum H.240cm anthracite gray
The ELDA 15x15cm aluminum posts are designed to offer strength, durability, and elegance for your aluminum gate and pedestrian gate installations. With a total height of 240cm and a thickness of 3mm, these posts guarantee optimal stability for gates up to 160cm high.
Made of Qualicoat-certified powder-coated aluminum, they are highly resistant to corrosion and weathering. Their anthracite gray color (RAL 7016), with a matte sandblasted finish, harmonizes with all CASANOOV aluminum gates and pedestrian gates for a modern and refined look.
These posts are designed for installation in concrete (without a base plate), ensuring a robust and durable fixing, even for motorized installations.
They are compatible with all our aluminum gates and pedestrian gates up to 160cm, as well as with all CASANOOV motors, for simple and reliable installation.
- 2 aluminum posts
- 2 aluminum post caps
- Galvanized steel screws included
- Clear assembly instructions
Important: This kit does not include a base or mounting plate. It must be set in the ground with a minimum of 50 cm of concrete to ensure maximum stability.
The finishing cap is easy to install and remove, allowing for the passage of electrical cables for motorization or the addition of accessories (photocells, flashing lights, etc.).
Maintenance: Simply cleaning with soapy water is all that is needed to preserve the shine and color of your post.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsSide gate 1m HALTI H.160cm grey aluminium
Need a modern and elegant gate? Discover the HALTI range.
The HALTI designer gate stands out with its refined and flowing "nature" patterns, inspired by organic shapes. These decorative cutouts add a natural and contemporary touch while ensuring complete privacy. A perfect blend of aesthetics and practicality, this HALTI aluminum gate is the ideal asset to enhance your outdoor entrance with a design inspired by nature.
Gate: A smooth and functional passageway for everyday use
A garden gate is an ideal solution for facilitating movement while optimizing the organization of your outdoor space. Thanks to its pedestrian-friendly opening, it provides quick access to your garden, courtyard, or patio without having to open a large gate. Practical for everyday use, it eliminates unnecessary back-and-forth and integrates perfectly with your existing fence or gate. Available in several materials and styles, it combines functionality and aesthetics for a harmonious and efficient design.
This gate has a wind resistance of 55 km/h.
Material: Aluminum
Color: Anthracite Gray - RAL 7016
Pattern: "Nature"
Dimensions: Width 99.5 cm x Height 157.9 cm
Required width between pillars: 103.8 cm
Minimum pillar height: 175 cm
Inspired and designed in France
- 7 powder-coated slats (width 15.5 cm)
- 1 decorative aluminum plate with a "Nature" motif (thickness 20/100)
- 1 upper hinge
- 1 lower hinge
- 1 receiving stop
- 1 cylinder lock
- 1 handle (black)
- 5 keys
- Finishing caps
- Screws
About the Material
Aluminum is attractive for its lightness and ease of use, making it easy to install on all types of terrain. A modern material, it offers a wide range of designs and colors to blend in with your outdoor space. Resistant to impacts and climatic variations, it remains intact over time. By choosing aluminum, you benefit from a versatile, customizable, and durable design to enhance your outdoor space.
Are posts included?
Our kits do not include posts, as they are not always necessary. If you already have posts in place, installation is possible without adding any additional materials.
For those who need them, we offer value packs with compatible posts.
The minimum height of the posts for this gate is 175 cm.
How should I maintain my aluminum structure?
Aluminum requires little maintenance, but regular cleaning extends its lifespan. Once or twice a year, simply use warm soapy water and a soft cloth, then rinse and dry thoroughly. Avoid abrasive products and high-pressure cleaning, which could damage the lacquer.
Need help choosing your gate?
Contact our customer service via our online form.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsTANKER C600 sliding gate motorization
The TANKER C600 sliding gate motor is designed for users wishing to motorize their sliding gate to automate its opening and closing. It allows you to transform your gate into an electric sliding gate.
This rack-and-pinion motor is suitable for all types of sliding gates that can be motorized.
Whether for PVC, wood, aluminum, or iron sliding gates, this automatic system can be installed on all models weighing less than 600 kg.
Here are the main technical specifications of the motor:
Motor voltage: 230V – 370W
Input power: 220VAC ±10%/110VAC ±10%
Frequency: 50Hz/60Hz
Gear module: M4 Z=16 teeth
Output torque: 30.0 Nm
Nominal rotation speed: 14,000 rpm
Maximum gate weight: 600kg on level ground
Magnetic start and end stops
Environmental temperature: -25°C ~ +55°C
Protection class: IP55
Opening speed: approximately 12 meters per minute
Maximum force: 1100N
Nylon rack
Control card included in the motor.
- 1 motor
- 2 4-button remote controls with protective cover. Batteries are included.
- Nylon rack (4m – 12 pieces of 33cm)
- Installation and setup manual
- 2 quick release keys in case of power outage
- 1 pair of infrared photocells with the following features:
- 'Transmitter' photocell
- 'Receiver' photocell
- Black ABS material
- Infrared with anti-glare 50,000LUX
- 1 3W LED flashing light (equivalent to 30W for an old-generation incandescent bulb)
The flashing light has the following specifications:
- Operating voltage: 12-265 VAC/DC
- Charging capacity: < 3 W
- Flashing frequency: 1 Hz
- Operating temperature: -20°C ~ +60°C
- IP rating: IP54
Tanker C600 motor features:
- Opening according to your choice: left to right (factory mode) or right to left.
- Automatic closing: After opening, the gate will automatically close after 0, 10, 30, or 60 seconds, depending on your choice.
- Pedestrian mode: The gate opens only partially and then closes after 0, 5, 10, or 30 seconds.
- Condominium mode: This mode allows for reduced settings and the configuration of up to 50 remote controls. Each remote control will control: button 1 (gate opening), button 2 (gate stopping), button 3 (gate closing), and button 4 (pedestrian mode). Each remote control will operate in the same way.
- Adjustable opening and closing sensitivity: Depending on your environment, you can adjust the opening and closing power.
- Manual gate release. With the included key, you can disengage the opening of your gate and operate it manually.
- Auto-stop. The gate stops if it encounters an obstacle.
- The motor cannot be connected to a backup battery. In the event of a power outage, manual release with two keys (included) is possible. This disengages the motor's output pinion and allows you to operate your gate freely.
You can combine this motor with photocells, a flashing light, and an opening push button. Be sure to check the electrical compatibility (voltage in Volts) of your existing accessories if they are not from our website. All our accessories are compatible with all our motors.
Installation Tips:
To successfully connect and configure your motor, proceed step by step and check that it's working properly between each step. If you're adding accessories to your C600 motor, check that your motor is working properly each time. Finally, make sure your electrical wiring is clean. This will help you with your installation and prevent electrical leaks.
Our Casanoov technical team is here to assist you if needed.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsTechnical data
-
Length of steel rail
8 m
-
Locking system
Barrel lock
-
Stud/rail assembly
Self-drilling screws
-
Type of lock
4 Keys
-
Finishing
mast
-
Supplied accessories
Yes
-
Eligibility Extended warranty 5 years
No
-
Compatible motorization type
sliding
-
Assembly time
8 h
-
RAL
7016
-
Operating clearance
26 mm
-
Sleeper Section
77*30 mm
-
Pattern / Design
HALTI
-
Warranty
2 an(s)
-
Required discharge length
4 m
-
Sleeper thickness
1.2 mm
-
Width between pillars
396 cm
-
Opening system
Sliding
-
Height
162.8 cm
-
Width
396 cm
-
Exists by beating
Yes
-
Handle material
Aluminium
-
Eligibility Extension of warranty 10 years
No
-
Required pillar height
175 cm
-
Type of filling
half openworked
-
Amounts Section
78*47 mm
-
Thickness of the blades
1.2 mm
-
Main material
Aluminium
-
Opening direction
left to right/right to left
-
Guide system
Upper guide with 4 nylon olives
-
Handle colour
Black
-
Number of casters
4
-
Stud thickness
1.4 mm
-
Colour
Charcoal grey
-
Recommended number of persons for assembly
2
-
Assembly instructions
Yes
-
Frame material
Aluminium
-
Length of the tail of the sliding gate
25.4 cm
-
Wind resistance
55 km/h
-
Rod assembly
Self-drilling screws
-
Compatible engines
Yes
-
RAL
7016
-
Section
15*15 cm
-
Main material
Aluminum
-
Finishing
Powder coating
-
Hat size
15*15 cm
-
Type of installation
To be sealed
-
Width
15 cm
-
Warranty
2 an(s)
-
Screws included
Yes
-
Height
240 cm
-
Colour
Charcoal grey
-
Mounting plate included
No
-
Notice
Yes
-
Thickness
3 mm
-
Installation type
To be sealed
-
Pivoting system
Ball bearing
-
Stud/rail assembly
Self-drilling screws
-
Minimum pillar height
175 cm
-
Stud thickness
1.4 mm
-
Eligibility Extension of warranty 10 years
No
-
Amounts Section
78*47 mm
-
Sleeper Section
77*30 mm
-
RAL
7016
-
Blade section
155*15 mm
-
Finishing
Sand mat
-
Height
160.7 cm
-
Assembly time
5 h
-
Operating clearance
15 mm
-
Recommended number of persons for assembly
2
-
Supplied accessories
Yes
-
Adjustable installation accessories
Yes
-
Locking system
Cylinder lock
-
Type of lock
Keys (5)
-
Rod assembly
Self-drilling screws
-
Opening direction
See Technical drawing
-
Pattern / Design
HALTI
-
Compatible pillar spacing
102,3 - 105,3 cm
-
Width between pillars
103 cm
-
Width
99.5 cm
-
Number of lower hinges
1
-
Number of upper hinges
1
-
Assembly instructions
Yes
-
Compatible motorization type
With articulated arms and jacks
-
Compatible engines
Yes
-
Sleeper thickness
2 mm
-
Top cover cap
Yes
-
Handle material
Aluminium
-
Number of end stops
1
-
Warranty
2 an(s)
-
Frame material
Aluminium
-
Type of filling
half openworked
-
Eligibility Extended warranty 5 years
No
-
Main material
Aluminium
-
Colour
Charcoal grey
-
Wind resistance
55 km/h
-
Type of mechanism
Sliding
-
Compatible for portals
Aluminium, pvc, wood, iron
-
Power
230 V
-
Supply voltage
220VAC±10%/110VAC±10%
-
Power consumption
370 W
-
Nominal operating thrust
1090 Nm
-
Maximum thrust
1100 Nm
-
Rotational speed of the pinion in revolutions per minute
1400
-
Opening / closing speed in meters per minute
12m/min
-
Opening time for a 3m gate
15 s
-
Gate weight up to
600 kg
-
Engine rain protection
IP55
-
Operating temperature
-25°C to +55°C
-
Opening right to left
Yes
-
Opening left to right
Yes
-
Manganese limit switches
Yes
-
Mechanical spring limit switches
No
-
Gable material
Alloy
-
Number of sprocket teeth
16
-
Automatically programmable closing after opening
Yes
-
Manual release
Yes
-
Co-ownership mode
Yes
-
Obstacle detection
Yes
-
Photocell Compatible
Yes
-
Flashing light compatible
Yes
-
External battery compatible
No
-
Keyboard compatible
Yes
-
Key lock compatible
Yes
-
Gradual opening / closing
Yes
-
Adjustment of opening and closing speed
Yes
-
Maximum number of associable remote controls
30
-
Number of remote controls included
2
-
Number of remote control keys
4
-
Nylon rack included
Yes
-
Instructions / screws included
Yes
-
Infrared photocells included x2
Yes
-
LED flashing light included
Yes
-
Gross weight
11 kg
-
Partial pedestrian opening
Yes
-
Warranty
2 an(s)
-
Eligibility Extended warranty 5 years
No
-
Eligibility Extension of warranty 10 years
No
-
Assembly time
4 h
-
Recommended number of persons for assembly
2
-
Assembly instructions
Yes
-
Mounting accessories supplied
Yes
Customers' opinion
Questions from our customers
All our products have a 2-year commercial warranty.
All our products are delivered in kit form and to be assembled by you.
We have designed and imagined our products so that they are easy to assemble, and your customer experience is pleasant.
We have provided you with clear assembly instructions that you can download.
All the accessories necessary for the installation of your portal are provided to you, and everything that is included in our portals is specified in the technical characteristics of the product as well as in the description.
You can find all this information on each of our product sheets through these different tabs:
- In the “Technical characteristics” tab
- In the “Technical drawing” tab
- In the “Assembly instructions” tab
If, upon receipt and assembly of your products, you have any questions about the installation, you can always contact us through the Casanoov contact form.
For orders where all products are advertised as "In stock", we do our best to prepare your order in less than 24 hours.
Delivery times are communicated to you on each of our product sheets.
- To do this, look for the model you want, you will then find its product sheet:
- The delivery time will be notified directly on the product sheet, next to the add to cart button
For orders with products "in reservation", preparation and delivery take place at the time of the effective return to stock.
We offer you in full consciousness a longer delivery time to allow you to receive your entire order in a grouped manner.
You are advised to place two different orders if you wish to receive the products in stock more quickly and place a second order with the products for which we are awaiting stock.
Our delivery costs are free, so this will have no impact on your final cost.
You can contact us via the contact form, section "Question about a product". We will do our utmost to provide you with all the help you need and to answer your questions about our articles.
A Question/Answer system will be set up very quickly on each of our products so that your questions can also help the Casanoov community in their choice!
Choose your products at promotional prices
0 items added to your cart
SKU:
