Height
Height: 148 cm
Width
Width: 301 cm
Opening direction
Opening direction: Towards the house
  • This pack contains:
  • ATHOS composite swing gate
  • Width: 300cm and Height: 140cm
  • 2 aluminum posts 10x10cm H.166cm grey

ATHOS 3m H.140cm Anthracite Grey Composite Wood Swing Gate with Aluminium Frame + 2 Aluminium Posts 10x10cm

PAC-003901

£1077

£1052

* Priority booking
At your place from 26/06!
Height
Height: 148 cm
Width
Width: 301 cm
Opening direction
Opening direction: Towards the house
  • This pack contains:
  • ATHOS composite swing gate
  • Width: 300cm and Height: 140cm
  • 2 aluminum posts 10x10cm H.166cm grey
Secure payment

Secure payment

Delivery within 5 days

Delivery within 5 days

Free shipping

Free shipping

ATHOS 3m H.140cm Anthracite Grey Composite Wood Swing Gate with Aluminium Frame + 2 Aluminium Posts 10x10cm

£1077

£1052

* Priority booking

Description

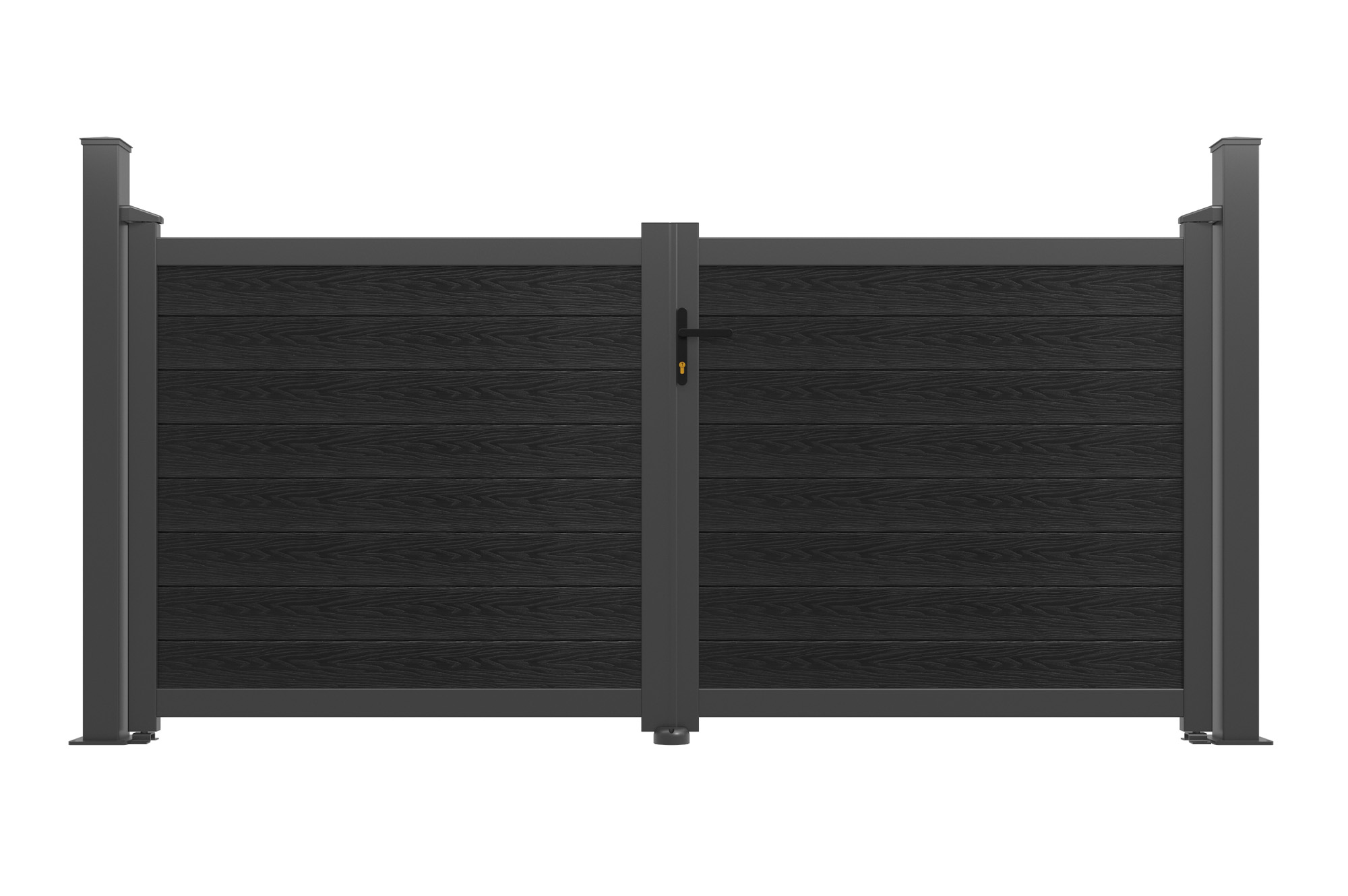

ATHOS 3m H.140cm anthracite grey solid wood swing gate with aluminum frame

The ATHOS composite swing gate offers a robust and elegant entrance, designed to last. Its Qualicoat-treated aluminum structure combined with composite wood slats guarantees exceptional resistance to UV rays and humidity, without the need for painting or sanding. Wind-resistant up to 100 km/h, it can …

Post EIFEL 10x10cm H.166cm grey anthracite

EIFEL powder-coated aluminum posts have been specially designed for the installation of swing gates or wickets.

The practical cap on our EIFEL posts is easy to install and remove, allowing you to run electrical wires through them if you need to motorize your gate or …

ATHOS 3m H.140cm anthracite grey solid wood swing gate with aluminum frame

The ATHOS composite swing gate offers a robust and elegant entrance, designed to last. Its Qualicoat-treated aluminum structure combined with composite wood slats guarantees exceptional resistance to UV rays and humidity, without the need for painting or sanding. Wind-resistant up to 100 km/h, it can be motorized for everyday convenience. For added customization, the composite gate can be cut to size and precisely adapted to your existing space by adjusting to your gate post.

Dimensions: Width 300 cm x Height 140 cm
Space between posts: 303 cm to 306 cm
Minimum post height: 160 cm
Wind resistance: 100 km/h
Motorized and cuttable
Color: Anthracite gray

- 4 vertical aluminum uprights (80 x 45 x 2 mm)
- 4 horizontal aluminum crossbars (80 x 35 x 2 mm)
- 2 reinforced 3 mm aluminum bottom rails (motorized compatible)
- 16 composite slats (158 x 16 mm - 3.9 mm thick - 1380 mm long)
- 1 black handle
- 2 side stops
- 2 top hinges
- 2 bottom hinges
- 1 center stop
- 1 cylinder lock + 3 keys
- Finishing caps
- All necessary screws

About the material

The frame is made of Qualicoat-treated aluminum, guaranteeing optimal resistance to corrosion and UV rays. The infill panels are made of composite wood: this material offers a natural and uniform appearance, without splinters, while being impervious to moisture and UV rays. Unlike solid wood, it does not rot, swell, or warp, and maintains perfect dimensional stability over time.

How to maintain your composite gate?

One of the major advantages of WPC composite wood is its virtually maintenance-free nature. No sanding, staining, or varnishing is necessary: simply cleaning with clean water and mild soap is enough to preserve the gate's original appearance. Resistant to mold and insects, the composite requires no preventative treatment. It is therefore a particularly economical solution in the long run, both in terms of time and maintenance costs.

For this product

Clear instructions

Quick and easy assembly

Find all the necessary information about this product in the Technical specifications

Download the instructions

Post EIFEL 10x10cm H.166cm grey anthracite

EIFEL powder-coated aluminum posts have been specially designed for the installation of swing gates or wickets.

The practical cap on our EIFEL posts is easy to install and remove, allowing you to run electrical wires through them if you need to motorize your gate or wicket, or to install motorized accessories (flashing lights, photocells, etc.).

This 10x10cm EIFEL post, measuring 166cm high, is suitable for all our aluminum swing gates and wickets up to 140cm high.

Color: Anthracite Gray - RAL 7016
Material: Aluminum
Post Height: 1.66 m
Post Cross Section: 10 x 10 cm
Patina Cross Section: 15 x 15 cm
Installation Method: Screw-on or sealed
Maximum Gate Height: 140 cm

- Post
- Plastic finishing cap with fixing screws (anthracite gray color)
- Expansion bolts (for ground mounting)

Tips:

Gate weight less than 80 kg: You can secure your post by screwing the post mounting plate to the ground (bolts included in our kits)*

Gate weight over 80 kg: It is recommended to concrete and reinforce the EIFEL post to strengthen it (see technical diagram).

* For hollow posts, we recommend securing the plate using 10x120 mm anchor bolts for a stronger and more secure attachment.
For concrete-covered posts, you can easily secure your post using the bolts included in our kits.

Compatible with all CASANOOV gates and wickets with a height of 140 cm.
The 10x10 cm EIFEL post is available in a height of 190 cm.
Also available in the following sections: 15x15 cm; 20x20cm

If your installation requires multiple posts, you'll find promotional offers in the "Gate Accessories" category, including sets of 2 or 4 EIFEL posts of your choice.

Clear instructions, quick and easy assembly.
Find all the necessary information about this product in the technical specifications.

For this product

Clear instructions

Quick and easy assembly

Find all the necessary information about this product in the Technical specifications

Download the instructions

Technical data

  • Eligibility Extended warranty 5 years

    No

  • Assembly time

    8 h

  • Compatible pillar spacing

    303-306 cm

  • RAL

    7016

  • Finishing

    Powder coating

  • Main material

    Composite wood

  • Type of filling

    Full

  • Amounts Section

    80*45 mm

  • Blade section

    158*16 mm

  • Compatible motorization type

    Articulated arm and jacks

  • Locking system

    Cylinder lock

  • Opening direction

    Towards the house

  • Operating clearance

    30 mm

  • Pivoting system

    Ball bearing

  • Rod assembly

    Self-drilling screws

  • Sleeper Section

    80*35 mm

  • Stud/rail assembly

    Self-drilling screws

  • Type of lock

    Keys (3)

  • Compatible engines

    Yes

  • End stop

    2

  • Frame material

    Aluminium

  • Height

    148 cm

  • Minimum pillar height

    160 cm

  • Number of lower hinges

    2

  • Number of upper hinges

    2

  • Sleeper thickness

    2 mm

  • Stud thickness

    2 mm

  • Supplied accessories

    Yes

  • Thickness of the blades

    3.8 mm

  • Top cover cap

    Yes

  • Width

    301 cm

  • Wind resistance

    100 km/h

  • Assembly instructions

    Yes

  • Central stop

    Yes

  • Eligibility Extension of warranty 10 years

    No

  • Recommended number of persons for assembly

    2

  • Warranty

    2 an(s)

  • Colour

    Charcoal grey

  • Handle material

    Aluminum

  • Handle colour

    Black

  • Opening system

    Swing gate

  • Available in sliding

    No

  • Stage size

    15x15 cm

  • Thickness

    2 mm

  • Screws included

    Yes

  • RAL

    7016

  • Section

    10x10 cm

  • Hat size

    12,5x12,5 cm

  • Finishing

    Powder coating

  • Type of installation

    To screw or seal

  • Height

    166 cm

  • Platinum thickness

    10 mm

  • Width

    10 cm

  • Main material

    Steel

  • Colour

    Charcoal grey

  • Mounting plate included

    Yes

  • Notice

    Yes

  • Warranty

    2 an(s)
