- This pack contains:
- ATHOS composite swing gate
- Width: 300cm and Height: 160cm
- 2 aluminum posts 20x20cm H.190cm grey

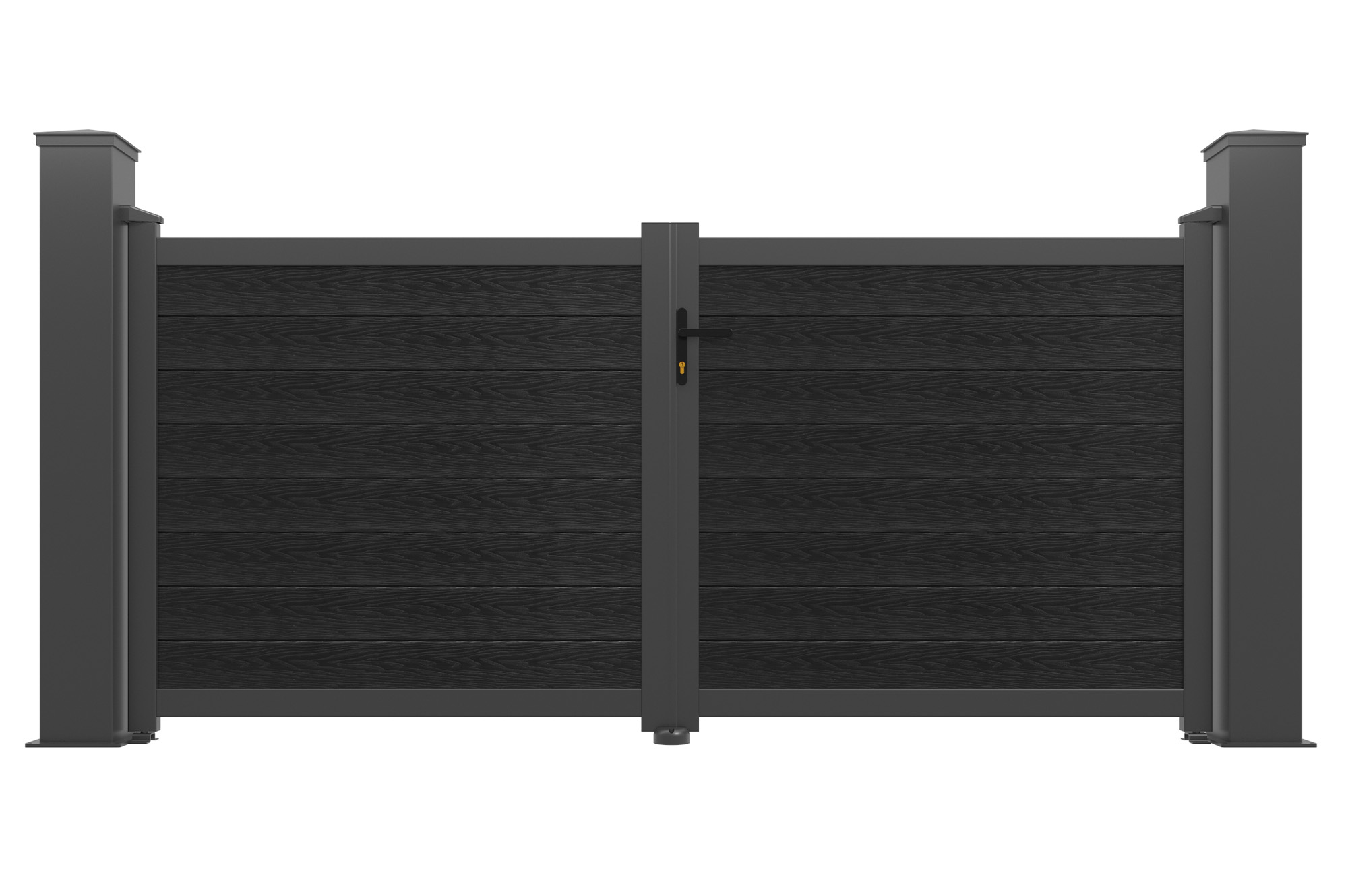

ATHOS 3m H.160cm Anthracite Grey Composite Wood Swing Gate with Aluminium Frame + 2 Aluminium Posts 20x20cm
PAC-003919
£1542
- This pack contains:
- ATHOS composite swing gate
- Width: 300cm and Height: 160cm
- 2 aluminum posts 20x20cm H.190cm grey
Secure payment
Delivery within 5 days
Free shipping
ATHOS 3m H.160cm Anthracite Grey Composite Wood Swing Gate with Aluminium Frame + 2 Aluminium Posts 20x20cm
£1542
Description
ATHOS 3m H.160cm anthracite grey solid wood swing gate with aluminum frame
The ATHOS composite swing gate offers a robust and elegant entrance, designed to last. Its Qualicoat-treated aluminum structure combined with composite wood slats guarantees exceptional resistance to UV rays and humidity, without the need for painting or sanding. Wind-resistant up to 100 km/h, it can …
Post EIFEL 20x20cm H.190cm grey anthracite
EIFEL powder-coated aluminum posts have been specially designed for the installation of swing gates, sliding gates, or wickets.
The practical cap on our EIFEL posts is easy to install and remove, allowing you to run electrical wires through them if you need to motorize your …
ATHOS 3m H.160cm anthracite grey solid wood swing gate with aluminum frame
The ATHOS composite swing gate offers a robust and elegant entrance, designed to last. Its Qualicoat-treated aluminum structure combined with composite wood slats guarantees exceptional resistance to UV rays and humidity, without the need for painting or sanding. Wind-resistant up to 100 km/h, it can be motorized for everyday convenience. For added customization, the composite gate can be cut to size and precisely adapted to your existing space by adjusting to your gate post.
Dimensions: Width 300 cm x Height 160 cm
Space between posts: 303 cm to 306 cm
Minimum post height: 175 cm
Wind resistance: 100 km/h
Motorized and cuttable
Color: Anthracite gray
- 4 vertical aluminum uprights (80 x 45 x 2 mm)
- 4 horizontal aluminum crossbars (80 x 35 x 2 mm)
- 2 reinforced 3 mm aluminum bottom rails (motorized compatible)
- 18 composite slats (158 x 16 mm - 3.9 mm thick - 1380 mm long)
- 1 black handle
- 2 side stops
- 2 top hinges
- 2 bottom hinges
- 1 center stop
- 1 cylinder lock + 3 keys
- Finishing caps
- All necessary screws
About the material
The frame is made of Qualicoat-treated aluminum, guaranteeing optimal resistance to corrosion and UV rays. The infill panels are made of composite wood: this material offers a natural and uniform appearance, without splinters, while being impervious to moisture and UV rays. Unlike solid wood, it does not rot, swell, or warp, and maintains perfect dimensional stability over time.
How to maintain your composite gate?
One of the major advantages of WPC composite wood is its virtually maintenance-free nature. No sanding, staining, or varnishing is necessary: simply cleaning with clean water and mild soap is enough to preserve the gate's original appearance. Resistant to mold and insects, the composite requires no preventative treatment. It is therefore a particularly economical solution in the long run, both in terms of time and maintenance costs.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsPost EIFEL 20x20cm H.190cm grey anthracite
EIFEL powder-coated aluminum posts have been specially designed for the installation of swing gates, sliding gates, or wickets.
The practical cap on our EIFEL posts is easy to install and remove, allowing you to run electrical wires through them if you need to motorize your gate or wicket, or to install motorized accessories (flashing lights, photocells, etc.).
This 20x20cm EIFEL post, measuring 190cm high, is suitable for all aluminum gates and wickets up to 180cm high.
Color: Anthracite Gray - RAL 7016
Material: Aluminum
Post Height: 1.90 m
Post Section: 20 x 20 cm
Patina Section: 25 x 25 cm
Installation Method: Screw-on or sealed
Maximum Gate Height: 180 cm
- Post
- Plastic finishing cap with fixing screws (anthracite gray color)
- Expansion bolts (for ground mounting)
Tips:
Gate weight less than 80 kg: You can secure your post by screwing the post mounting plate to the ground (bolts included in our kits)*
Gate weight over 80 kg: It is recommended to concrete and reinforce the EIFEL post to strengthen it (see technical diagram).
* For hollow posts, we recommend securing the plate using 10x120 mm anchor bolts for a stronger and more secure attachment.
For concrete-covered posts, you can easily secure your post using the bolts included in our kits.
Compatible with all CASANOOV gates and wickets with a height of 160 and 180 cm.
The 20x20 cm EIFEL post is available in a height of 166 cm.
Also available in the following sections: 10x10 cm; 15x15cm
If your installation requires multiple posts, you'll find promotional offers in the "Gate Accessories" category, including sets of 2 or 4 EIFEL posts of your choice.
Clear instructions, quick and easy assembly.
Find all the necessary information about this product in the technical specifications.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsTechnical data
-
Assembly instructions
Yes
-
Main material
Composite wood
-
Compatible motorization type
Articulated arm and jacks
-
Finishing
Powder coating
-
Compatible pillar spacing
303-306 cm
-
Opening system
Swing gate
-
Type of filling
Full
-
Opening direction
Towards the house
-
Operating clearance
30 mm
-
Pivoting system
Ball bearing
-
Amounts Section
80*45 mm
-
Assembly time
8 h
-
Supplied accessories
Yes
-
Stud/rail assembly
Self-drilling screws
-
Blade section
158*16 mm
-
Locking system
Cylinder lock
-
Rod assembly
Self-drilling screws
-
Sleeper Section
80*35 mm
-
Type of lock
Keys (3)
-
Handle colour
Black
-
Available in sliding
No
-
Central stop
Yes
-
Colour
Charcoal grey
-
Compatible engines
Yes
-
Top cover cap
Yes
-
Warranty
2 an(s)
-
Width
301 cm
-
Handle material
Aluminum
-
Thickness of the blades
3.8 mm
-
Stud thickness
2 mm
-
Eligibility Extended warranty 5 years
No
-
Eligibility Extension of warranty 10 years
No
-
Wind resistance
100 km/h
-
End stop
2
-
Frame material
Aluminium
-
Height
158 cm
-
Minimum pillar height
175 cm
-
Number of lower hinges
2
-
Number of upper hinges
2
-
Recommended number of persons for assembly
2
-
Sleeper thickness
2 mm
-
Screws included
Yes
-
Stage size
25x25 cm
-
Hat size
22x22 cm
-
Notice
Yes
-
Section
20x20 cm
-
RAL
7016
-
Platinum thickness
10 mm
-
Thickness
2 mm
-
Warranty
2 an(s)
-
Mounting plate included
Yes
-
Height
190 cm
-
Type of installation
To screw or seal
-
Finishing
Powder coating
-
Width
20 cm
-
Main material
Steel
-
Colour
Charcoal grey
Customers' opinion
Questions from our customers
All our products have a 2-year commercial warranty.
All our products are delivered in kit form and to be assembled by you.
We have designed and imagined our products so that they are easy to assemble, and your customer experience is pleasant.
We have provided you with clear assembly instructions that you can download.
All the accessories necessary for the installation of your portal are provided to you, and everything that is included in our portals is specified in the technical characteristics of the product as well as in the description.
You can find all this information on each of our product sheets through these different tabs:
- In the “Technical characteristics” tab
- In the “Technical drawing” tab
- In the “Assembly instructions” tab
If, upon receipt and assembly of your products, you have any questions about the installation, you can always contact us through the Casanoov contact form.
For orders where all products are advertised as "In stock", we do our best to prepare your order in less than 24 hours.
Delivery times are communicated to you on each of our product sheets.
- To do this, look for the model you want, you will then find its product sheet:
- The delivery time will be notified directly on the product sheet, next to the add to cart button
For orders with products "in reservation", preparation and delivery take place at the time of the effective return to stock.
We offer you in full consciousness a longer delivery time to allow you to receive your entire order in a grouped manner.
You are advised to place two different orders if you wish to receive the products in stock more quickly and place a second order with the products for which we are awaiting stock.
Our delivery costs are free, so this will have no impact on your final cost.
You can contact us via the contact form, section "Question about a product". We will do our utmost to provide you with all the help you need and to answer your questions about our articles.
A Question/Answer system will be set up very quickly on each of our products so that your questions can also help the Casanoov community in their choice!
