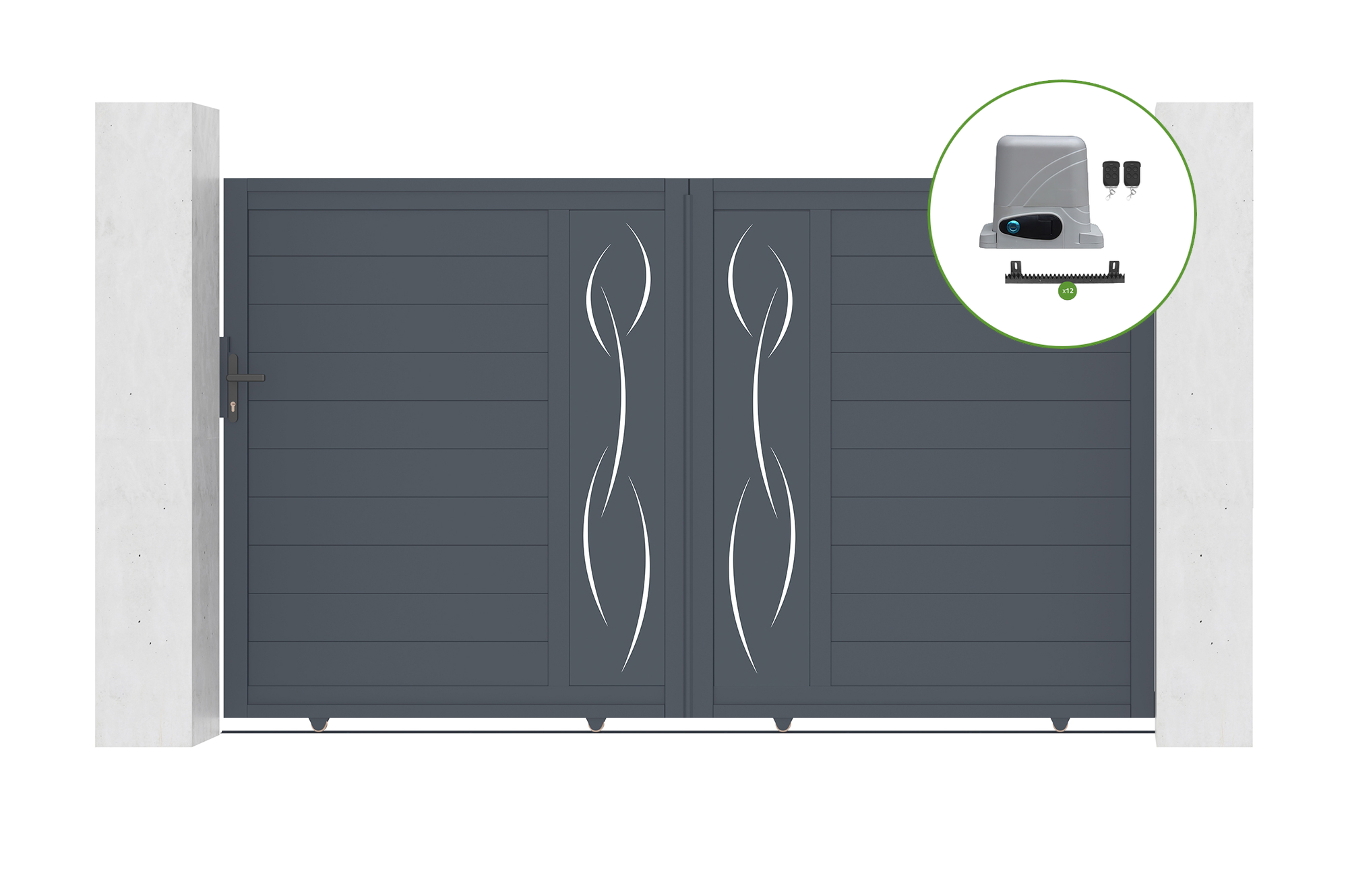

The LIFE sliding driveway gate with its graphic design will bring modernity and elegance to your entrance thanks to its unique decorative panels with their "LIFE" style patterns
Description : Modern sliding gate with vertical decorative panels Material: Aluminium Colour: Anthracite grey (RAL 7016) Type of pattern : "LIFE" Dimensions : Width 298 cm x Height 178 cm Total width required with clearance : 648 cm Minimum height of pillars: 190 cm Inspired and designed in France
This do-it-yourself modern sliding gate kit with laser design contains :: - 18 powder coated slats (Height 16 cm) - 2 reinforced powder coated slats for motorisation (Height 16 cm) - 2 decorative aluminium panels with "LIFE" pattern (Thickness 20/100) - 1 top guide with 4 nylon wheels - 6m aluminium guide rail - 4 steel wheels - 1 closes strike box - 1 limit stop - 1 sash lock - 1 double handles (Black colour) - Set of 5 keys - Finishing caps - Screws and bolts
If you wish to motorise your sliding gate, Casanoov suggests packs in the "Sliding Gate" category You will find promotional packs offering you a set consisting of a sliding driveway gate of your choice accompanied by the appropriate automation.
In case your installation requires pillars, promotional packages are also available containing a sliding driveway gate of your choice, together with two aluminium posts to match the chosen entrance gate. FYI : The minimum pillar height for this gate is 190cm
The LIFE model is also available in other sizes and colours. For a harmonious exterior, we propose matching swing gates, garden gates and fences.
To personalize your sliding gate, you can change the direction or position of the decorative plates.
Driveway gate delivered in kit form. Clear instructions, quick and easy assembly. You will find all the necessary information about this product in the technical data.
It is technically possible to install your gate with an opening from the right to the left. You will find all the information you need to change the opening direction in our installation instructions. Our installation instructions for sliding gates have been designed to offer you two different installation methods depending on the chosen opening direction: from left to right or from right to left. For further information, please contact our customer service via our contact form.
The RANGER C300 sliding gate motor is designed for users wishing to motorize their sliding gate to automate its opening and closing. It allows you to transform your gate into an electric sliding gate. This rack-and-pinion motor is suitable for all types of sliding gates that can be motorized. Whether for a PVC, wood, aluminum, or iron sliding gate, this automatic system can be installed on all models weighing less than 300 kg.
Here are the main technical specifications of the motor:
Motor voltage: 230V – 250W Input power: 220VAC±10%/110VAC±10% Frequency: 50Hz/60Hz Gear module: M4 Z=16 teeth Output torque: 30.0 Nm Nominal rotation speed: 14,000 rpm Maximum gate weight: 300kg on level ground Magnetic start and end stops Environmental temperature: -25°C ~ +55°C Protection class: IP55 Opening speed: approximately 12 meters per minute Maximum force: 1100N Nylon rack Control card included with the motor.
Accessories included:
- Two 4-button remote controls with protective cover. Batteries are included. - Nylon rack (4m – 12 pieces of 33cm) - Installation and setup manual - Two quick release keys in case of power outage
The motor cannot be connected to a backup battery. In the event of a power outage, manual unlocking with two keys is possible. This disengages the motor's output pinion and allows you to operate your gate freely. The flashing light and photocells are not included.
RANGER C300 motor features:
- Opening according to your choice: left to right (factory mode) or right to left. - Automatic closing: after opening, the gate will automatically close after 0, 10, 30, or 60 seconds, depending on your choice. - Pedestrian mode: the gate opens only partially and then closes within 0, 5, 10, or 30 seconds. - Condominium mode: this mode allows you to reduce settings and configure up to 50 remote controls. Each remote control will control: button 1 (gate opening), button 2 (gate stopping), button 3 (gate closing), and button 4 (pedestrian mode). Each remote control will operate in the same way. - Adjustable opening and closing sensitivity: you can adjust the opening and closing force depending on your environment. - Manual gate unlocking. Using the provided key, you can disengage the opening of your gate and operate it manually. - Auto-stop. The gate stops if it encounters an obstacle.
You can combine this motor with photocells, a flashing light, and an opening push button. Be sure to check the electrical compatibility (voltage in volts) of your existing accessories if they are not from our website. All our accessories are compatible with all our motors.
Installation Tips:
To successfully connect and configure your motor, proceed step by step and check that it's working properly between each step. If you're adding accessories to your C300 motor, check that your motor is working properly each time. Finally, make sure your electrical wiring is clean. This will help you operate your system and prevent electrical leaks. Our Casanoov technical team is here to assist you if needed.
Assembly instructions - KIT-000196
