- This pack contains:
- Grey aluminum swing gate
- 2 aluminum posts, 240cm high
- Post dimensions: 15x15cm

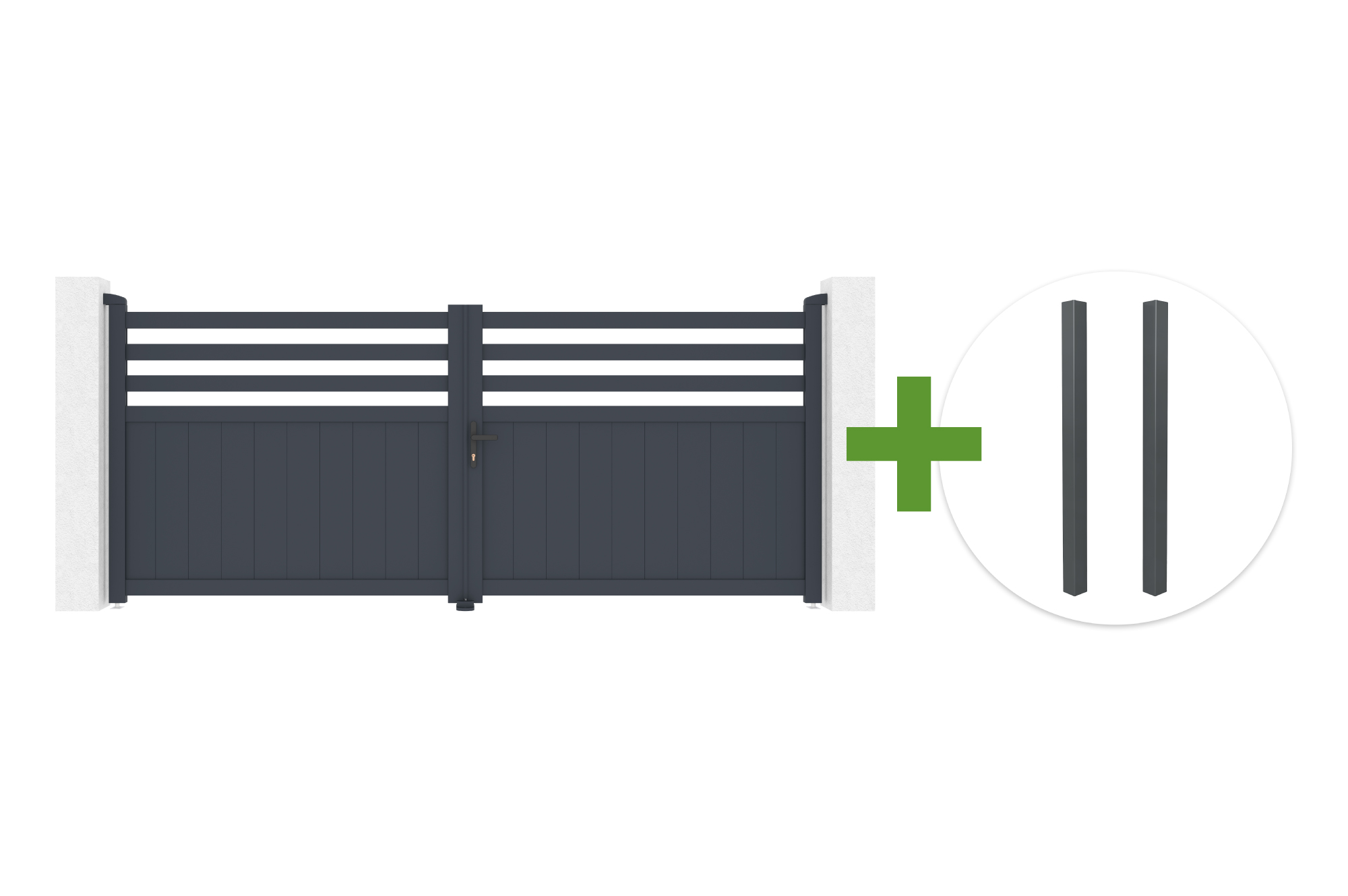

NEVIS 340x140cm grey aluminum swing gate + 2 ELDA grey aluminum posts 15x15cm
PAC-004359
£1493TVA 10% ✓
- This pack contains:
- Grey aluminum swing gate
- 2 aluminum posts, 240cm high
- Post dimensions: 15x15cm
Secure payment
Delivery within 5 days
Free shipping
NEVIS 340x140cm grey aluminum swing gate + 2 ELDA grey aluminum posts 15x15cm
£1493
Description
Swing gate 3,4m NEVIS H.140 grey aluminium
Need a semi-openwork gate that combines elegance and light? Discover the NEVIS range.
The NEVIS aluminum swing gate stands out with its design, combining modernity and lightness. With its openwork horizontal slats on the upper section, it allows ample light to circulate while preserving privacy …
Set of 2 ELDA posts 15x15cm aluminum H.240cm anthracite gray
The ELDA 15x15cm aluminum posts are designed to offer strength, durability, and elegance for your aluminum gate and pedestrian gate installations. With a total height of 240cm and a thickness of 3mm, these posts guarantee optimal stability for gates up to 160cm high.
Made of …
Swing gate 3,4m NEVIS H.140 grey aluminium
Need a semi-openwork gate that combines elegance and light? Discover the NEVIS range.
The NEVIS aluminum swing gate stands out with its design, combining modernity and lightness. With its openwork horizontal slats on the upper section, it allows ample light to circulate while preserving privacy in the lower section. Perfectly suited to a contemporary exterior, this semi-openwork aluminum swing gate combines aesthetics and functionality for an elegant and practical look.
Swing Gate: The ideal solution for a spacious and secure entrance
With its classic two-leaf opening, the swing gate combines elegance and practicality. Ideal for spacious entrances, it offers easy access while adding a touch of style to your exterior. Robust and durable, it is weather-resistant, ensuring a long lifespan. Easy to maintain, it is a reliable and attractive solution for securing your property. If you choose a double-leaf gate motor, this will further increase its ease of use, making it easier to open and close your electric swing gate on a daily basis.
This swing gate has a wind resistance of 55 km/h.
Material: Aluminum
Color: Anthracite Gray - RAL 7016
Dimensions: Width 335 cm x Height 140 cm
Required width between posts: 340 cm
Minimum post height: 160 cm
- 4 bars (7.8cm wide)
- 20 powder-coated slats (15.5cm wide)
- 2 upper hinges mounted on ball bearings
- 2 lower hinges
- 1 automatic center stop
- 2 receiving stops
- 1 barrel lock (black)
- 1 handle
- 5 keys
- Finishing caps
- Screws
About the Material
Aluminum stands out for its lightness, strength, and corrosion resistance. This material does not rust and retains its appearance over time, even in the face of adverse weather conditions. Easy to maintain, simple regular cleaning is enough to preserve its original shine. Durable and attractive, aluminum is ideal for your outdoor spaces, offering a modern and high-performance solution. By choosing aluminum, you combine practicality, longevity, and elegance every day.
Need posts?
Posts are not included in our kits, as they are not necessary if you already have exterior pillars or posts for installing your product.
If you need pillars, we offer promotional packs that include the product of your choice with two matching posts.
The minimum height of the pillars for this swing gate is 160 cm.
How to maintain your aluminum structure?
Aluminum requires little maintenance, but regular cleaning extends its lifespan. Once or twice a year, simply use warm soapy water and a soft cloth, then rinse and dry thoroughly. Avoid abrasive products and high-pressure cleaning, which could damage the lacquer.
Need help choosing your swing gate?
Contact our customer service via our online form.
Product delivered in kit form
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsSet of 2 ELDA posts 15x15cm aluminum H.240cm anthracite gray
The ELDA 15x15cm aluminum posts are designed to offer strength, durability, and elegance for your aluminum gate and pedestrian gate installations. With a total height of 240cm and a thickness of 3mm, these posts guarantee optimal stability for gates up to 160cm high.
Made of Qualicoat-certified powder-coated aluminum, they are highly resistant to corrosion and weathering. Their anthracite gray color (RAL 7016), with a matte sandblasted finish, harmonizes with all CASANOOV aluminum gates and pedestrian gates for a modern and refined look.
These posts are designed for installation in concrete (without a base plate), ensuring a robust and durable fixing, even for motorized installations.
They are compatible with all our aluminum gates and pedestrian gates up to 160cm, as well as with all CASANOOV motors, for simple and reliable installation.
- 2 aluminum posts
- 2 aluminum post caps
- Galvanized steel screws included
- Clear assembly instructions
Important: This kit does not include a base or mounting plate. It must be set in the ground with a minimum of 50 cm of concrete to ensure maximum stability.
The finishing cap is easy to install and remove, allowing for the passage of electrical cables for motorization or the addition of accessories (photocells, flashing lights, etc.).
Maintenance: Simply cleaning with soapy water is all that is needed to preserve the shine and color of your post.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsTechnical data
-
Number of lower hinges
2
-
Locking system
Barrel lock
-
Eligibility Extended warranty 5 years
No
-
Amounts Section
78*47 mm
-
Finishing
Mast
-
Type of lock
5 Keys
-
Assembly instructions
Yes
-
End stop
2
-
Sleeper thickness
2 mm
-
Width
334,7 cm
-
Eligibility Extension of warranty 10 years
No
-
Number of upper hinges
2
-
Compatible engines
Yes
-
Handle colour
Black
-
Height
148 cm
-
Compatible pillar spacing
336,7 - 342,7 cm
-
Assembly time
8 h
-
Sleeper Section
77*30 mm
-
Width between pillars
3397 cm
-
Warranty
2 an(s)
-
RAL
7016
-
Blade section
155*15 mm
-
Handle material
Aluminium
-
Frame material
Aluminium
-
Operating clearance
30 mm
-
Minimum pillar height
150 cm
-
Supplied accessories
Yes
-
Thickness of the blades
1.2 mm
-
Stud thickness
1.4 mm
-
Central stop
Yes
-
Top cover cap
Yes
-
Main material
Aluminium
-
Recommended number of persons for assembly
2
-
Available in sliding
Yes
-
Type of filling
half openworked
-
Compatible motorization type
With articulated arm and jacks
-
Pattern / Design
NEVIS
-
Stud/rail assembly
Self-drilling screws
-
Opening direction
Towards the house, See Technical diagram
-
Rod assembly
Self-drilling screws
-
Pivoting system
Ball bearing
-
Colour
Charcoal grey
-
Opening system
Swing gate
-
Wind resistance
55 km/h
-
RAL
7016
-
Section
15*15 cm
-
Main material
Aluminum
-
Finishing
Powder coating
-
Hat size
15*15 cm
-
Type of installation
To be sealed
-
Width
15 cm
-
Warranty
2 an(s)
-
Screws included
Yes
-
Height
240 cm
-
Colour
Charcoal grey
-
Mounting plate included
No
-
Notice
Yes
-
Thickness
3 mm
-
Installation type
To be sealed
