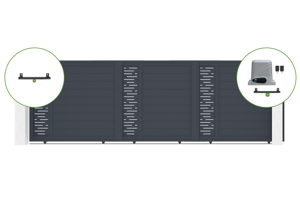

Sliding gate kit 5m ARLBERG H.160cm + motor RANGER C300

Name: Sliding gate kit 5m ARLBERG H.160cm + motor RANGER C300
Brand: casanoov
Price: 4419.0 EUR
Availability: LimitedAvailability

SKU : PAC-001775

£3409

This kit includes :
Aluminium sliding gate ARLBERG grey
Width: 498cm and Height: 160cm
Rack motorization (Up toÂ 300kg)

Available September

Alert me

Notify me when this product is back in stock.

Casanoov celebrates its 5th anniversary!

1 aluminum gate purchased = 1 motorization free + draw with 5 winners!

Technical data

Sliding gate 5m ARLBERG H.160 gray aluminum

Thickness of the blades

1.2 mm

Sleeper thickness

1.2 mm

RAL

7016

Blade width

Assembly time

8 h

Sleeper Section

70*30 mm

Amounts Section

78*47 mm

Operating clearance

26 mm

Handle material

Aluminium

Sliding gate 5m ARLBERG H.160 gray aluminum

Thickness of the blades

1.2 mm

Sleeper thickness

1.2 mm

RAL

7016

Blade width

Assembly time

8 h

Sleeper Section

70*30 mm

Amounts Section

78*47 mm

Operating clearance

26 mm

Handle material

Aluminium

Pattern / Design

ARLBERG

Locking system

Barrel lock

Compatible engines

Yes

Compatible motorization type

Sliding

Assembly instructions

Yes

Length of the tail of the sliding gate

Eligibility Extension of warranty 10 years

Length of steel rail

10 m

Eligibility Extended warranty 5 years

Required pillar height

175 cm

Finishing

Sand mat

Warranty

2 an(s)

Width

498 cm

Stud/rail assembly

Self-drilling screws

Stud thickness

1.5 mm

Number of wheels

Supplied accessories

Yes

Recommended number of persons for assembly

Main material

Aluminium

Color

Charcoal grey

Wind resistance

55 km/h

Handle colour

Black

Type of filling

half openworked

Guide system

Upper guide with 6 nylon olives

Width between pillars

474 cm

Required discharge length

5 m

Height

165 cm

Frame material

Aluminium

Opening system

Sliding

Exists by beating

Type of lock

5 keys

Rod assembly

Self-drilling screws

Opening direction

left to right / right to left

Weight of package No.1

27.6 kg

Weight of package No.2

29.1 kg

Weight of package No.3

18.1 kg

Weight of package No.4

29.5 kg

Weight of package No.5

7.0 kg

Weight of package No.6

4.0 kg

RANGER C300 sliding gate motorization

Type of mechanism

Sliding

Compatible for portals

Aluminium, pvc, wood, iron

Power

230 V

Supply voltage

220VAC±10%/110VAC±10%

Power consumption

250 W

Amperage

Nominal operating thrust

1090 Nm

Maximum thrust

1100 Nm

Rotational speed of the pinion in revolutions per minute

1400

Opening / closing speed in meters per minute

12m/min

Opening time for a 3m gate

15 s

Gate weight up to

300 kg

Engine rain protection

IP55

Operating temperature

-25°C to +55°C

Opening right to left

Yes

Opening left to right

Yes

Manganese limit switches

Yes

Mechanical spring limit switches

Gable material

Alloy

Number of sprocket teeth

Automatically programmable closing after opening

Yes

Manual release

Yes

Co-ownership mode

Yes

Obstacle detection

Yes

Photocell Compatible

Yes

Flashing light compatible

Yes

External battery compatible

Keyboard compatible

Yes

Key lock compatible

Yes

Gradual opening / closing

Yes

Adjustment of opening and closing speed

Yes

Maximum number of associable remote controls

Number of remote controls included

Number of remote control keys

Nylon rack included

Yes

Instructions / screws included

Yes

Infrared photocells included x2

LED flashing light included

Gross weight

7 kg

Partial pedestrian opening

Yes

Warranty

2 an(s)

Eligibility Extended warranty 5 years

Eligibility Extension of warranty 10 years

Assembly time

4 h

Recommended number of persons for assembly

Assembly instructions

Yes

Mounting accessories supplied

Yes

Weight of package No.1

12.8 kg

4 meter nylon rack for GEAR sliding gate

Weight of package No.1

5.5 kg

Description

This kit includes :
Aluminium sliding gate ARLBERG grey
Width: 498cm and Height: 160cm
Rack motorization (Up toÂ 300kg)

Sliding gate 5m ARLBERG H.160 gray aluminum

Discover our ARLBERG XL sliding gate in aluminium, the perfect balance between style and functionality thanks to its decorative plates with the "Graphic …

Sliding gate 5m ARLBERG H.160 gray aluminum

Discover our ARLBERG XL sliding gate in aluminium, the perfect balance between style and functionality thanks to its decorative plates with the "Graphic Lines" pattern.

Thanks to its length of 5 metres, it is ideal for large entrances, guaranteeing easy access and secure parking for your vehicles.

The unique aesthetic aspect of this gate will create a strong visual impact, impressing your visitors and passers-by.
Its timeless anthracite grey colour fits perfectly into any architectural setting, whether modern or traditional.

Made of aluminium, this XL gate combines lightness and robustness, weather-resistant while minimising its maintenance.

Opt for the marriage of modern design and durability with an aluminium gate that combines form and function, enhancing the charm of your property.

Description: Semi-openwork straight sliding gate with decoration
Material: Aluminum
Color: Anthracite gray RAL 7016
Type of Pattern: "Graphic line"
Dimensions: Width 474 cm x Height 163 cm
Total width required with clearance: 948 cm
Minimum height of pillars: 175 cm
Inspired and designed in France

This gate kit to assemble and install by yourself contains:
- 27 thermo-lacquered aluminum slats (Height 16 cm)
- 3 decorative aluminum plates with "Graphic line" pattern (Thickness 20/100)
- 1 upper guide composed of 6 nylon rollers
- 9.48m steel guide rail
- 6 steel rollers
- 1 reception strike
- 1 reception stop
- 1 barrel lock
- 1 Handle (Black)
- 5 keys
- Finishing caps
- Screws

If you want to motorize your sliding gate, promotional packs are available under this product sheet.

The posts are not included in our kits because they are not essential for the installation of your sliding gate if your exterior already has pillars/posts.

To ensure a safe and stable installation of the sliding gate, the posts must have a minimum height of 175 cm and a width of at least 20 cm.

If your installation requires pillars, we offer promotional packs including an aluminum sliding gate of your choice, accompanied by two aluminum posts adapted to the chosen entrance gate.

The ARLBERG XL model is also available in other dimensions.
Also available in swing and wicket versions.

To personalize your sliding gate, you can change the direction or position of the decorative plates

Gate delivered in kit form.
Clear instructions, quick and easy assembly.
Find all the necessary information about this product in the Technical characteristics

It is technically possible to assemble your gate with an opening from right to left.
Our sliding gate assembly instructions have been designed to offer you two different installation options depending on the chosen opening direction: from left to right or from right to left (finishing strip on the outside).
For any further information, please contact our customer service via our contact form.

RANGER C300 sliding gate motorization

The RANGER C300 sliding gate motor is designed for users wishing to motorize their sliding gate to automate its opening and closing. It allows you to transform your gate into an electric sliding gate.
This rack-and-pinion motor is suitable for all types of sliding gates that can be motorized.
Whether for a PVC, wood, aluminum, or iron sliding gate, this automatic system can be installed on all models weighing less than 300 kg.

Here are the main technical specifications of the motor:

Motor voltage: 230V – 250W
Input power: 220VAC±10%/110VAC±10%
Frequency: 50Hz/60Hz
Gear module: M4 Z=16 teeth
Output torque: 30.0 Nm
Nominal rotation speed: 14,000 rpm
Maximum gate weight: 300kg on level ground
Magnetic start and end stops
Environmental temperature: -25°C ~ +55°C
Protection class: IP55
Opening speed: approximately 12 meters per minute
Maximum force: 1100N
Nylon rack
Control card included with the motor.

Accessories included:

- Two 4-button remote controls with protective cover. Batteries are included.
- Nylon rack (4m – 12 pieces of 33cm)
- Installation and setup manual
- Two quick release keys in case of power outage

The motor cannot be connected to a backup battery. In the event of a power outage, manual unlocking with two keys is possible. This disengages the motor's output pinion and allows you to operate your gate freely.
The flashing light and photocells are not included.

RANGER C300 motor features:

- Opening according to your choice: left to right (factory mode) or right to left.
- Automatic closing: after opening, the gate will automatically close after 0, 10, 30, or 60 seconds, depending on your choice. - Pedestrian mode: the gate opens only partially and then closes within 0, 5, 10, or 30 seconds.
- Condominium mode: this mode allows you to reduce settings and configure up to 50 remote controls. Each remote control will control: button 1 (gate opening), button 2 (gate stopping), button 3 (gate closing), and button 4 (pedestrian mode). Each remote control will operate in the same way.
- Adjustable opening and closing sensitivity: you can adjust the opening and closing force depending on your environment.
- Manual gate unlocking. Using the provided key, you can disengage the opening of your gate and operate it manually.
- Auto-stop. The gate stops if it encounters an obstacle.

You can combine this motor with photocells, a flashing light, and an opening push button. Be sure to check the electrical compatibility (voltage in volts) of your existing accessories if they are not from our website. All our accessories are compatible with all our motors.

Installation Tips:

To successfully connect and configure your motor, proceed step by step and check that it's working properly between each step. If you're adding accessories to your C300 motor, check that your motor is working properly each time. Finally, make sure your electrical wiring is clean. This will help you operate your system and prevent electrical leaks.
Our Casanoov technical team is here to assist you if needed.
