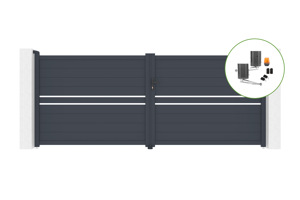

Swing gate 4m CIMONE H.160cm aluminum + BUNKER B500 motorization

Name: Swing gate 4m CIMONE H.160cm aluminum + BUNKER B500 motorization
Brand: casanoov
Price: 2329.0 EUR
Availability: LimitedAvailability

SKU : PAC-001896

£2069

This motorized gate pack contains:
CIMONE gray aluminum swing gate
Width 397cm and Height 160cm
Articulated arm motorization (max. 500 Kg)

Available August

Alert me

Notify me when this product is back in stock.

Casanoov celebrates its 5th anniversary!

1 aluminum gate purchased = 1 motorization free + draw with 5 winners!

Technical data

Swing gate 4m CIMONE H.160 grey aluminium

Compatible engines

Yes

Amounts Section

78*47 mm

Height

166 cm

RAL

7016

Rod assembly

Self-drilling screws

Pivoting system

Ball bearing

Assembly time

8 h

Eligibility Extension of warranty 10 years

Top cover cap

Yes

Swing gate 4m CIMONE H.160 grey aluminium

Compatible engines

Yes

Amounts Section

78*47 mm

Height

166 cm

RAL

7016

Rod assembly

Self-drilling screws

Pivoting system

Ball bearing

Assembly time

8 h

Eligibility Extension of warranty 10 years

Top cover cap

Yes

Sleeper thickness

2 mm

Stud thickness

1.4 mm

Eligibility Extended warranty 5 years

Central stop

Yes

Supplied accessories

Yes

Available in sliding

Yes

Thickness of the blades

1.2 mm

Minimum pillar height

175 cm

Number of lower hinges

Sleeper Section

77*30 mm

Finishing

Mast

Warranty

2 an(s)

Type of lock

5 Keys

Blade section

155*15 mm

Operating clearance

30 mm

Pattern / Design

CIMONE

End stop

Width between pillars

401.7 cm

Frame material

Aluminium

Handle colour

Black

Handle material

Aluminium

Number of upper hinges

Recommended number of persons for assembly

Compatible motorization type

With articulated arm and jacks

Locking system

Barrel lock

Stud/rail assembly

Self-drilling screws

Opening direction

Towards the house, See Technical diagram

Width

396.7 cm

Assembly instructions

Yes

Wind resistance

55 km/h

Main material

Aluminium

Colour

Charcoal grey

Opening system

Swing gate

Type of filling

half openworked

Compatible pillar spacing

393,7 - 399,7 cm

BUNKER B500 swing gate motorization

Recommended number of persons for assembly

Maximum weight per fan

250 kg

External battery compatible

Yes

Arm speed in centimeters per second

1.5cm/s

Engine rain protection

IP55

Assembly time

4 h

Maximum opening angle

110 °

Housing size

29.5*20*18 cm

Opening time

15 seconds

Minimum opening angle

90 °

Keyboard compatible

Yes

Power

24 V

Adjustment of the opening and closing speed

Yes

Operating temperature

-45 ° C à +50 ° C

Nominal operating thrust

6300 Nm

Supply voltage

230VAC +/- 10%

Manual release

Yes

Maximum size per fan

3 m

Flashing light compatible

Yes

Mounting accessories included

Yes

Gross weight

29.7 kg

Maximum number of associable remote controls

120

Central gate stop included

Yes

Pole mounting brackets included

Yes

Amperage

10 A

Compatible for portals

Aluminum, pvc, wood, iron

Automatically programmable closing after opening

Yes

Obstacle detection

Yes

Length of open arm

97.2 cm

Infrared photocells included x2

Yes

Type of mechanism

Articulated arms

Photocell Compatible

Yes

LED flashing light included

Yes

Eligibility Extension of warranty 10 years

Number of remote control keys

Maximum thrust

6500 Nm

Eligibility Extended warranty 5 years

Gate mounting brackets included

Yes

Electronic cabinet with electronic board

Includes

Gradual opening / closing

Yes

Arm rotation speed in revolutions per minute

54 RPM tr/min

Screws included

Yes

Warranty

2 an(s)

Power consumption

160 W

Number of remote controls included

Partial pedestrian opening

Yes

Gate weight up to

500 kg

Assembly instructions

Yes

Co-ownership mode

Yes

Key lock compatible

Yes

Length of the closed arm

59.7 cm

Description

This motorized gate pack contains:
CIMONE gray aluminum swing gate
Width 397cm and Height 160cm
Articulated arm motorization (max. 500 Kg)

Swing gate 4m CIMONE H.160 grey aluminium

Ideal for closing your property while leaving a passage for pedestrians, discover our CIMONE aluminum swing gate, the perfect compromise for securing your …

Swing gate 4m CIMONE H.160 grey aluminium

Ideal for closing your property while leaving a passage for pedestrians, discover our CIMONE aluminum swing gate, the perfect compromise for securing your home without weighing down the appearance of your exterior.

Its full aluminum design makes this double swing gate an ideal model for protecting your property from prying eyes and thus benefiting from the greatest privacy.
However, its few horizontal openwork spaces allow you to not be completely cut off from the outside and thus be able to keep some light and visibility to the outside.

The 4m CIMONE swing gate offers an ideal solution, combining security, durability and originality for the entrance to your property. Its exclusive design combines elegance and modernity.

Designed in aluminum, a material recognized for its many advantages, the CIMONE swing gate is a sustainable choice because it combines lightness, longevity and minimal maintenance.
Indeed, aluminum is a material renowned for its anti-corrosion capabilities, its resistance to rust and shock as well as its ease of maintenance and its robustness.
Thanks to its powder-coated finish, you are even more assured of its long-term longevity

Installing the CIMONE gate is disconcertingly easy thanks to its ingenious design and its intuitive assembly manual, including all the necessary accessories.

Adopt the CIMONE swing gate and bring a subtle touch of originality to your property!

Description: Designer semi-openwork swing gate
Material: Aluminum
Color: Anthracite gray (RAL 7016)
Dimensions: Width 392 cm x Height 158 cm
Width required between pillars: 397 cm
Minimum height of pillars: 175 cm

This gate kit to assemble and install by yourself contains:
- 14 powder-coated blades (Height 15.5 cm)
- 2 reinforced powder-coated blades for motorization (Height 15.5 cm)
- 2 powder-coated blades (Height 10 cm)
- 2 lower hinges
- 2 receiving stops
- 1 automatic central stop
- 1 barrel lock
- 1 handle (Black color)
- 5 keys
- Finishing covers
- Screws

Save now by exploring the packs associated with this item!
All promotional packs associated with this gate are accessible in the “Promotional Pack” tab of this product sheet.

Need posts?
If your installation requires posts, we offer promotional packs including the aluminum gate of your choice accompanied by two aluminum posts adapted to the chosen garden gate.

The CIMONE gate is also available in height 1m40.
Are you attracted by the CIMONE range? Don't miss out on discovering the matching sliding gates and gates to create a harmonious exterior.

Garden gate delivered as a kit.
Clear instructions, quick and easy assembly.
Find all the necessary information about this product in the technical characteristics.

BUNKER B500 swing gate motorization

The BUNKER B500 articulated arm operator is ideal for motorizing swing gates up to 6 meters long and weighing up to 500 kg (i.e., 3 meters and 250 kg maximum per leaf).

Specially designed for swing gates, this articulated arm operator will allow you to motorize any type of swing gate, whether new or existing, made of iron, aluminum, PVC, or wood.

Comprising two motorized, articulated arms, each designed to motorize one leaf of your gate, the BUNKER B500 operator offers the unique advantage of achieving a natural movement, very close to manual opening thanks to its articulated arm mechanism.

Comes with clear and detailed installation instructions, you can motorize your gate quickly and easily! Our installation instructions have been designed to guide you step by step through the proper operation of your automation system, using clear instructions accompanied by illustrations to facilitate your understanding.

If you need assistance or encounter any difficulties, our Casanoov technical team is here to assist you.

This motorization kit includes:

- 2 motors with an electrical voltage of 24 Volts/160 Watts
- A central gate stop
This stop is to be used if you have a tilting stop for a manual gate.
When you motorize your swing gate, you must ensure that the central stop does not hold it back.

Your motorization will lock and secure your swing gate. - 2 pairs of articulated arms
- 2 4-button remote controls with protective cover (Batteries included)
- 1 LED flashing light
- 1 pair of photocells
- Screws for mounting on posts/pillars

Accessories not included with the BUNKER B500 motor:

Screws for attaching the motor to the gate.
These screws must be adapted to each gate type and chosen according to the thickness of your gate.
For Casanoov swing gates, we recommend attaching your motor arms with Rivkle blind rivets between 8 and 12 mm long. The mounting bracket must be positioned on the reinforced slats provided for this purpose on all our swing gates and wickets.

BUNKER B500 Features:

- Inward and outward opening
- Opening angle between 90° and 110°
- The opening angle is determined by your installation requirements. (You will find all the installation instructions in the instructions, which can be downloaded freely from the product page)
- Manual motor release in the event of a power outage
- Arm opening speed: 1.5 cm/second
- Maximum operating time: 5 minutes
- Internal rotation speed: 54 RPM (Revolutions per minute)
- Opening performance can vary using the soft opening and closing mode
- The opening and closing speed, as well as the drive power, can be adjusted to 20 different positions
- After opening, the gate can close automatically according to your chosen time interval, ranging from 0 to 99 seconds
- Pedestrian mode: You can choose to open only one of the two leaves
- Rain protection class: IP 55
- Weight of each motor: 29.7 kg
- Operating temperature: -45°C to +50°C
- Thrust force: 6300 N at 6500N
- Electrical connection power between your home and the motor: 220VAC ±10%
- Auto-stop function: If your gate encounters an obstacle, the gate automatically stops opening or closing.

You can add external accessories with a 24V operating power, such as a backup battery, magnetic or electric lock, or push button.

This swing gate motorization kit is delivered as a kit.
Clear instructions, quick and easy installation.
Find all the necessary information about this product in the technical specifications.

If you have any difficulties or questions during the installation of your automatic gate system, our Casanoov technical team is here to assist you!
